All Products

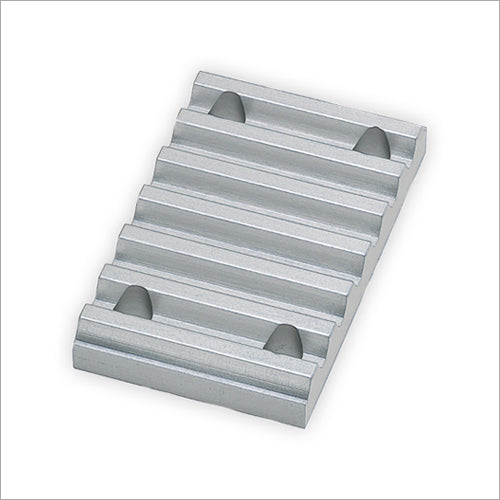

CPT5/25C Aluminium T5 Clamp Plate To Suit 25mm Wide Timing Belt

CPT5/16C Aluminium T5 Clamp Plate To Suit 16mm Wide Timing Belt

CPT10/50C Aluminium T10 Clamp Plate To Suit 50mm Wide Timing Belt

CP8M/85C Aluminium 8M Clamp Plate To Suit 85mm Wide Timing Belt

CP8M/20C Aluminium 8M Clamp Plate To Suit 20mm Wide Timing Belt

CP5M/15C Aluminium 5M Clamp Plate To Suit 15mm Wide Timing Belt

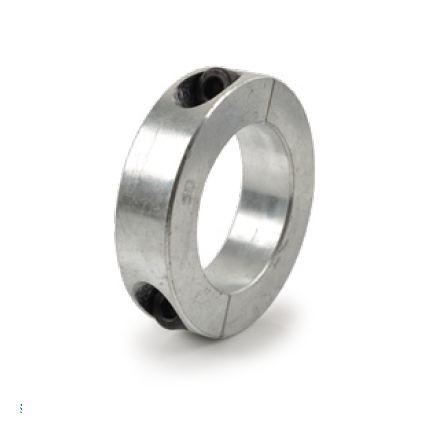

WHCADBI2.0Z Zinc Plated 2" Double Split CollarInside Diameter(inch):2Outside Diameter(inch):3”Width(inch):0.688Setscrew:5/16-24 UNF

WHCADBI2.5Z Zinc Plated 2.5" Double Split CollarInside Diameter(inch):2.5Outside Diameter(inch):3.75Width(inch):0.875Setscrew:3/8- 24 UNF

WHCADBI1.0Z Zinc Plated 1" Double Split CollarInside Diameter(inch):1Outside Diameter(inch):1.75Width(inch):0.5Setscrew:1/4-28 UNF

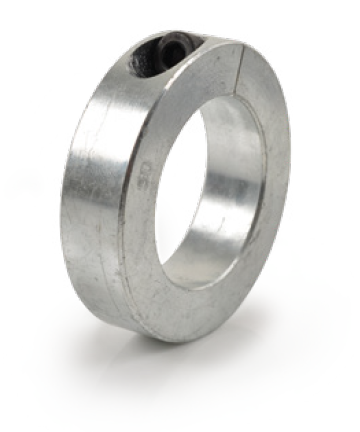

WHCASBI1.5Z Zinc Plated 1.5" Single Split CollarInside Diameter(inch):1.5Outside Diameter(inch):2.375Width(inch):0.563Setscrew:1/4-28 UNF

WHCASBI0.75Z Zinc Plated 0.75" Single Split CollarInside Diameter(inch):0.75Outside Diameter(inch):1.5Width(inch):0.5Setscrew:1/4-28 UNF

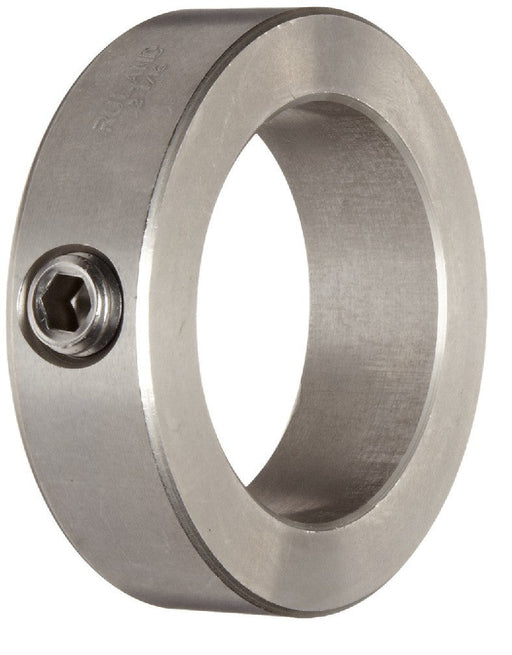

WHCABUI2.25ST Stainless Steel 2.25" Solid CollarInside Diameter(inch):2.25Outside Diameter(inch):3.25Width(inch):1.125Setscrew:1/2 BSW or 1/2-13 UNC

WHCABUI1.0ST Stainless Steel 1" Solid CollarInside Diameter(inch):1Outside Diameter(inch):1.625Width(inch):0.75Setscrew:5/16 BSW or 5/16-18 UNC

WHCABUI2.75Z Zinc Plated 2.75" Solid CollarInside Diameter(inch):2.75Outside Diameter(inch):3.75Width(inch):1.375Setscrew:5/8 BSW or 5/8-11 UNC

WHCADB06ST Stainless Steel 6mm Double Split CollarInside Diameter(mm):6Outside Diameter(mm):16Width(mm):9Setscrew:M3X8

WHCADB70Z Zinc Plated 70mm Double Split CollarInside Diameter(mm):70Outside Diameter(mm):98Width(mm):19Setscrew:M8X25

WHCADB50Z Zinc Plated 50mm Double Split CollarInside Diameter(mm):50Outside Diameter(mm):78Width(mm):19Setscrew:M8X25

WHCADB40Z Zinc Plated 40mm Double Split CollarInside Diameter(mm):40Outside Diameter(mm):60Width(mm):15Setscrew:M6X18

WHCADB38Z Zinc Plated 38mm Double Split CollarInside Diameter(mm):38Outside Diameter(mm):60Width(mm):15Setscrew:M6X18

WHCADB28Z Zinc Plated 28mm Double Split CollarInside Diameter(mm):28Outside Diameter(mm):48Width(mm):15Setscrew:M6X16

WHCADB20Z Zinc Plated 20mm Double Split CollarInside Diameter(mm):20Outside Diameter(mm):40Width(mm):15Setscrew:M6X16

WHCADB18Z Zinc Plated 18mm Double Split CollarInside Diameter(mm):18Outside Diameter(mm):36Width(mm):13Setscrew:M5X16

WHCADB16Z Zinc Plated 16mm Double Split CollarInside Diameter(mm):16Outside Diameter(mm):34Width(mm):13Setscrew:M5X16

WHCADB11Z Zinc Plated 11mm Double Split CollarInside Diameter(mm):11Outside Diameter(mm):28Width(mm):11Setscrew:M4X12
